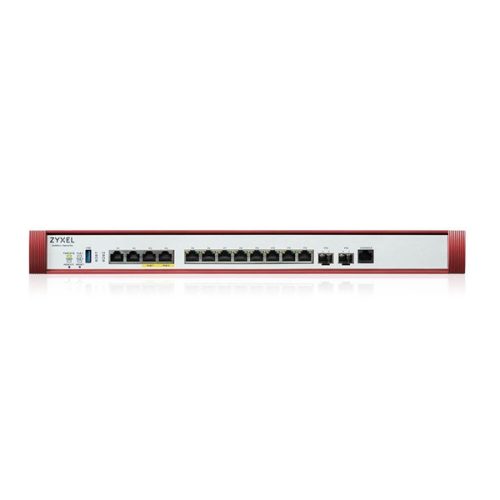

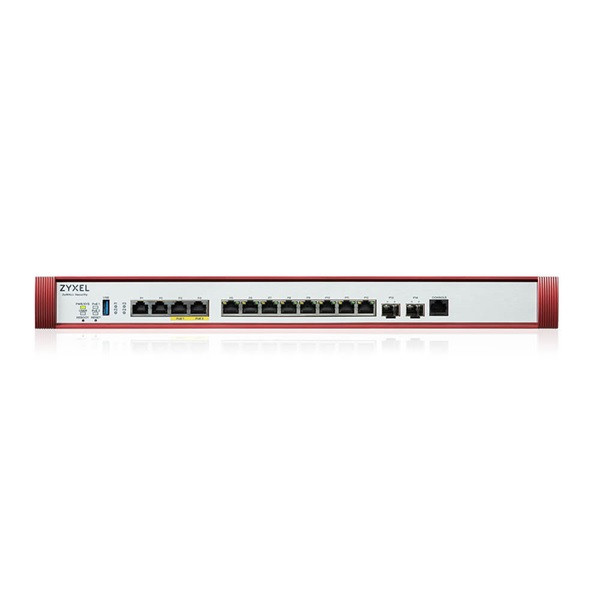

ZYXEL Tűzfal 2x10-GbE port(2xPOE+) + 2x2.5-GbE + 8x1-GbE + 2x10-GbE SFP+ 1xUSB 3.0 +1konzol port + 1 év Security Bundle

Hardware Specifications

Interface ports

2 x 2.5-GbE Ethernet

2 x 10-GbE/PoE Ethernet (802.3at, total 30W)

8 x 1-GbE Ethernet

2 x 10-GbE SFP+

USB 3.0 ports

1

Console port

Yes (RJ-45)

Rack-mountable

Yes

Fanless

-

System Capacity & Performance^*1

SPI firewall throughput (Mbps)^*2

15,000

VPN throughput (Mbps)^*3

3,000

IPS throughput (Mbps)^*4

6,300

Anti-Malware throughput (Mbps)^*4

4,000

UTM throughput (Anti-malware & IPS, Mbps)^*4

4,000

Max. TCP concurrent sessions^*5

2,000,000

Max. concurrent IPsec VPN tunnels^*6

1,000

Recommended gateway-to-gateway IPsec VPN tunnels

300

Concurrent SSL VPN users

500

VLAN interface

128

Max. Concurrent devices logins^*7

4,000

Security Service^*8

Anti-Malware

Yes

IPS

Yes

Application Patrol

Yes

Web filtering

Yes

Reputation Filter

Yes

SecuReporter

Yes

Sandboxing

Yes

Device Insight

Yes

Secure WiFi^*9

Yes

Key Features

VPN

IKEv2, IPSec, SSL

SSL (HTTPS) inspection

Yes

Two-Factor Authentication

Yes

Nebula Centralized Management

Yes

Power Requirements

Power input

100-240V AC, 50/60Hz, 2A max.

Max. power consumption (Watt Max.)

86.7

Heat dissipation (BTU/hr)

235

PoE power budget (watt max.)

30

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.): 430 x 250 x 43.5/16.93 x 9.84 x 1.71

Weight (kg/lb.): 3.14/6.93

Packing

Dimensions (WxDxH)(mm/in.): 512 x 395 x 162/20.16 x 15.55 x 6.38

Weight (kg/lb.): 4.90/10.81

Included accessories

Power cord

RJ-45 - RS-232 cable for console connection

Rack mounting kit

Environmental Specifications

Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -30°C to 70°C / -22°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

40°C/ 431877.9743 hr

25°C/ 669031.2966 hr

Acoustic noise

16.85dBA on < 25degC Operating Temperature, 47.84dBA on full FAN speed

Certifications

EMC

FCC Part 15 (Class A)

CE EMC (Class A)

RCM (Class A)

BSMI

Safety

LVD (EN62368-1)

BSMI
