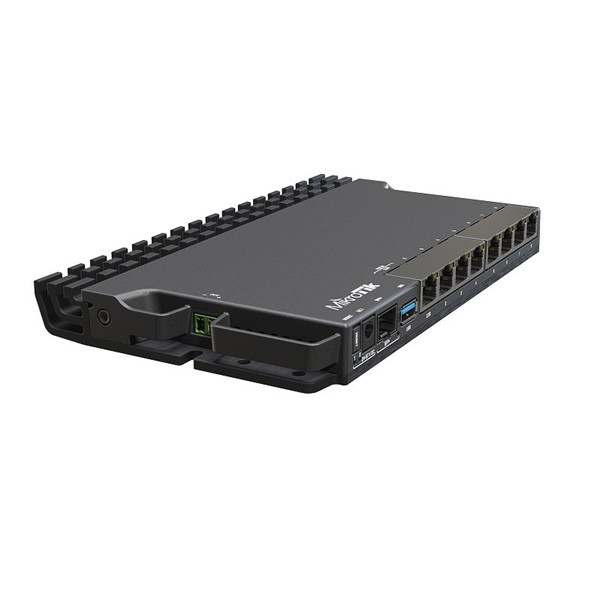

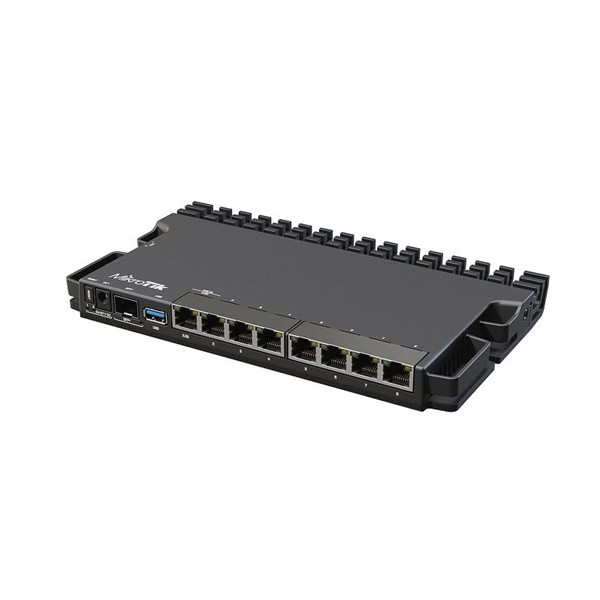

MIKROTIK Vezetékes Router RouterBOARD 7x1000Mbps + 1x2,5Gbit + 1x10Gbit SFP+, Rackes - RB5009UG+S+IN

• Részletek
• Adatok

Részletek

Specifications

Details
Product code	RB5009UG+S+IN
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
RouterOS license	5
Operating System	RouterOS (v7 only)
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C



Powering

Details
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	20 W
Max power consumption without attachments	14 W
FAN count	Passive
PoE in	802.3af/at
PoE in input Voltage	24-57 V



Ethernet

Details
10/100/1000 Ethernet ports	7
Number of 2.5G Ethernet ports	1



Fiber

Details
SFP+ ports	1



Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1



Other

Details
CPU temperature monitor	Yes



Certification & Approvals

Details
Certification	CE, EAC, ROHS





Included parts

•
  K-55 screw kit
•
  24V 1.5A power adapter

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Adatok

Gyártó:

MIKROTIK

EAN:

4752224007148

Listaár:

82 715 HUF

Gyártó:

MIKROTIK

Gyártói cikkszám:

RB5009UG+S+IN

Garancia:

12 hónap

Portok száma:

8

Tömeg:

1,5 kg/db
