Description

Product name

24-port GbE PoE Lite-L3 Smart Managed Switch with 4 10G Uplink

Switch class

Smart Managed

Port Density

Total port count

100/1000 Mbps

10 Gigabit SFP+

PoE

IEEE 802.3at (PoE+)

Total PoE budget (watts)

375

Performance

Switching capacity (Gbps)

128

Forwarding rate (Mpps)

95.2

Packet buffer (byte)

1.5 M

MAC address table

16 K

Jumbo frame (byte)

9 K

L3 forwarding table

Max. 512 IPv4 entries;

Max. 512 IPv6 entries

Routing table

VLAN routing

Yes

IP interface (IPv4/IPv6)

32/32

Flash/RAM

32 MB/512 MB

Power

Input

100 to 240 V AC, 50/60 Hz

Max. power consumption (watts)

452.6

Min. power consumption (watts)

15.9

Physical Specifications

Dimensions
(WxDxH)(mm/in.)

440 x 270 x 43/17.32 x 10.63 x 1.69

Weight
(kg/lb.)

3.6/7.94

Included accessories

Power cord

Rack mounting kit

Green Features

Energy-Efficient Ethernet

Yes

ESD/Surge Protections

Ethernet port surge protection

4 KV

Power supply surge protection

Line-GND: 2 KV

Line-Line: 1 KV

Ethernet port ESD protection (air/contact)

8 KV/6 KV

Environmental Specifications

Operating

Temperature: -20°C to 50°C/-4°F to 122°F

Humidity: 10% to 95% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 95% (non-condensing)

MTBF (hr)

786,686

Heat dissipation (BTU/hr)

264.782

Acoustic noise @ 25°C (min/max, dBA)

23.9/48.8

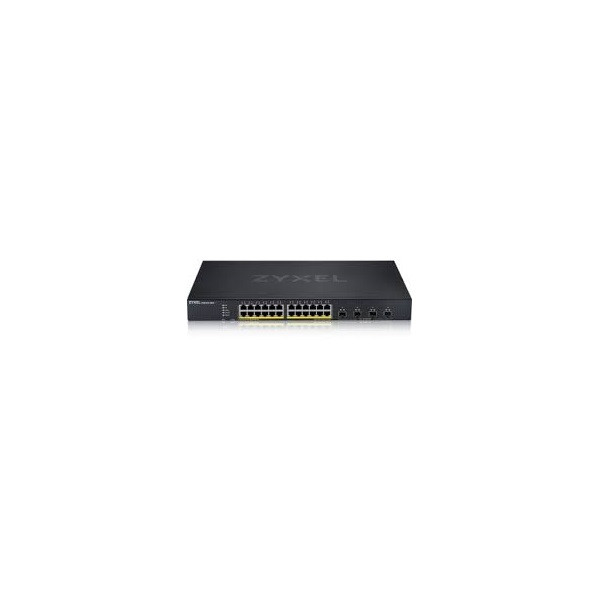

ZYXEL Switch 24x1000Mbps(24xPOE) + 4x10G SFP+, Fémházas Menedzselhető, Rackes, XGS1935-28HP-EU0101F
