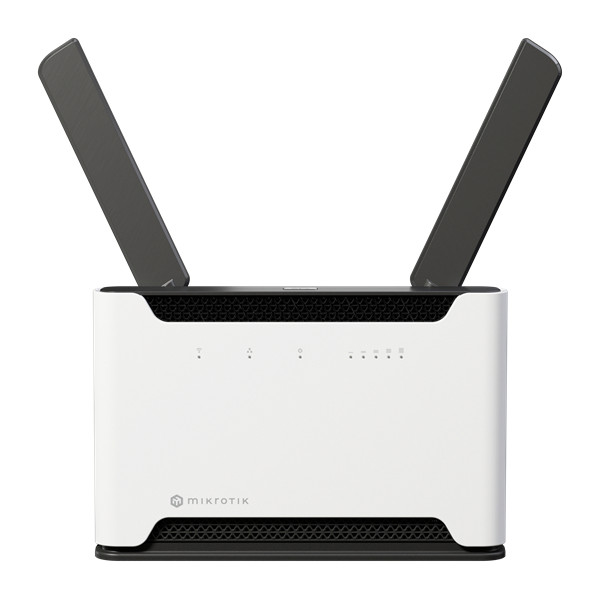

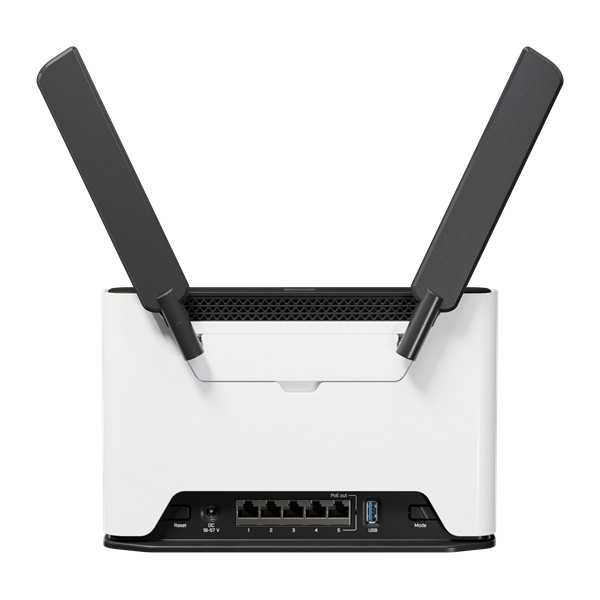

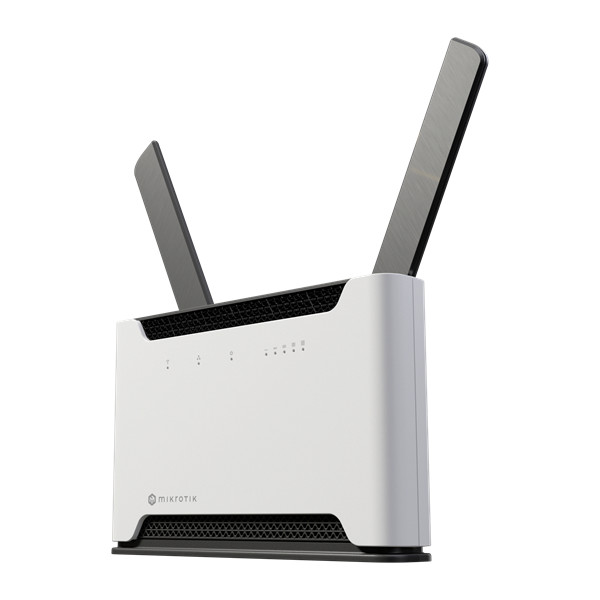

Name: MIKROTIK Wireless Router DualBand, 5x1000Mbps, Chateau PRO ax, WiFi6, Asztali - H53UiG-5HaxQ2HaxQ
Brand: MIKROTIK
SKU: 360604
Price: 94990 HUF
Availability: InStock

Specifications

Details
Product code	H53UiG-5HaxQ2HaxQ
Architecture	ARM 64bit
CPU	IPQ-8072A
CPU core count	4
CPU nominal frequency	2208 MHz
Switch chip model	IPQ-8072
RouterOS license	6
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	1148 Mbit/s
Wireless 2.4 GHz number of chains	4
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	5
Wireless 2.4 GHz chip model	QCN-5024
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	2400 Mbit/s
Wireless 5 GHz number of chains	4
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	6
Wireless 5 GHz chip model	QCN-5054
Wireless 5 GHz generation	Wi-Fi 6
WiFi speed	AX3600

Ethernet

Details
10/100/1000 Ethernet ports	5
Number of 1G Ethernet ports with PoE-out	1

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	18-57 V
Max power consumption	55 W
Max power consumption without attachments	18 W
Cooling type	Passive

PoE-out

Details
PoE-out ports	Ether5
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	500 mA
Max total out (A)	0.600 A
Total output current	0.600
Total output power	22.8

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	20

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes

Included parts

48 V 1.35 A power adapter
