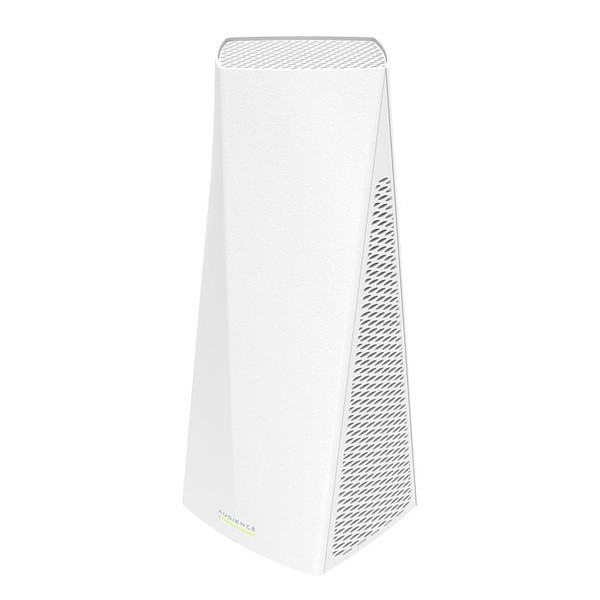

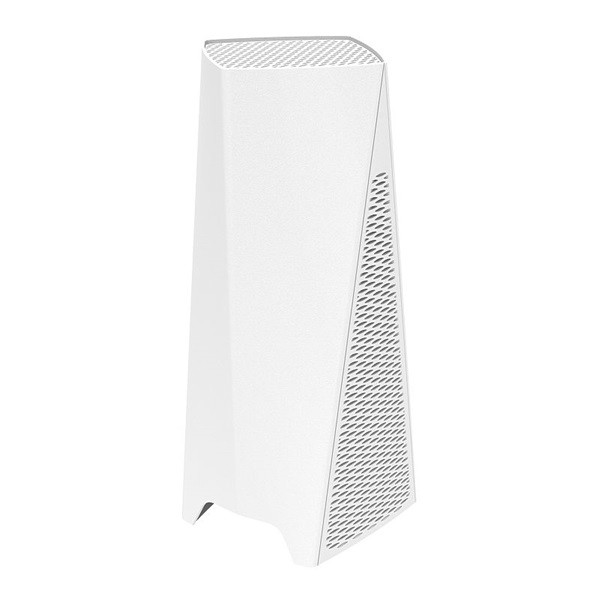

MIKROTIK Wireless Access Point Audience, TriBand, 2x1000Mbps, 2,9Gbps, Asztali - RBD25G-5HPacQD2HPnD

• Részletek
• Adatok

Részletek

Specifications

Details
Product code	RBD25G-5HPacQD2HPnD
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	716 MHz
Dimensions	100 x 235 x 97 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
IPsec hardware acceleration	Yes



Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	3.5
Wireless 2.4 GHz chip model	IPQ-4019
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	4.5
Wireless 5 GHz chip model	IPQ-4019
Wireless 5 GHz generation	Wi-Fi 5
Wireless 5 GHz Max data rate	1733 Mbit/s
Wireless 5 GHz number of chains	4
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	4.5
Wireless 5 GHz chip model	QCA9984
Wireless 5 GHz generation	Wi-Fi 5



Ethernet

Details
10/100/1000 Ethernet ports	2



Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	27 W
Max power consumption without attachments	27 W
FAN count	Passive
PoE in	Passive PoE
PoE in input Voltage	24-57 V



Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20



Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	26	-100
11MBit/s	26	-94
6MBit/s	29	-96
54MBit/s	26	-80
MCS0	29	-96
MCS7	25	-75



5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	28	-95
54MBit/s	25	-78
MCS0	28	-95
MCS7	24	-75
MCS9	22	-70



5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	32	-96
54MBit/s	28	-80
MCS0	32	-96
MCS7	27	-77
MCS9	25	-72





Included parts

•
  24 V 1.5 A power adapter (white)
•
  Ethernet cable

•

Adatok

Gyártó:

MIKROTIK

EAN:

4752224003478

Listaár:

67 666 HUF

Gyártó:

MIKROTIK

Gyártói cikkszám:

RBD25G-5HPACQD2HPND

Garancia:

24 hónap

Kültéri kivitel:

Nincs

Tömeg:

1,77 kg/db
