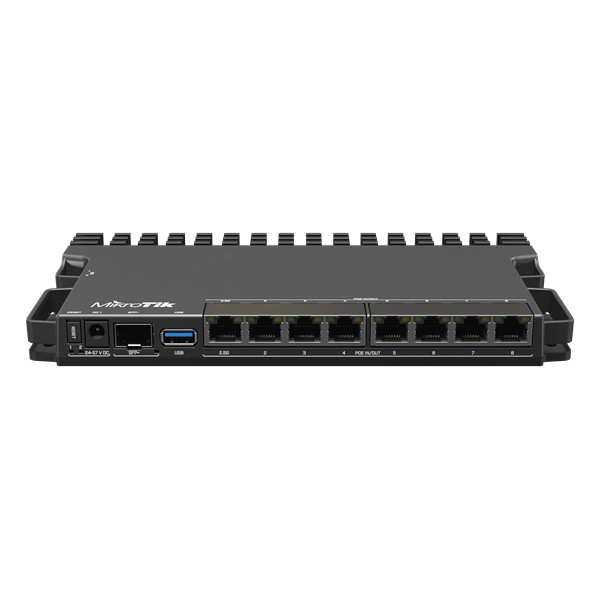

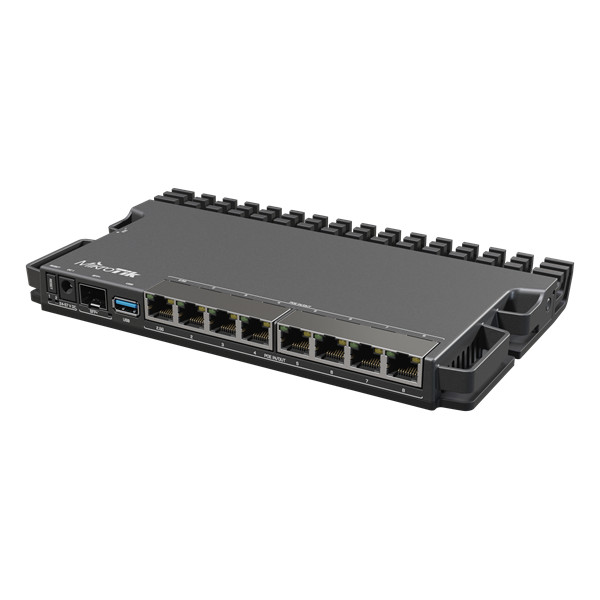

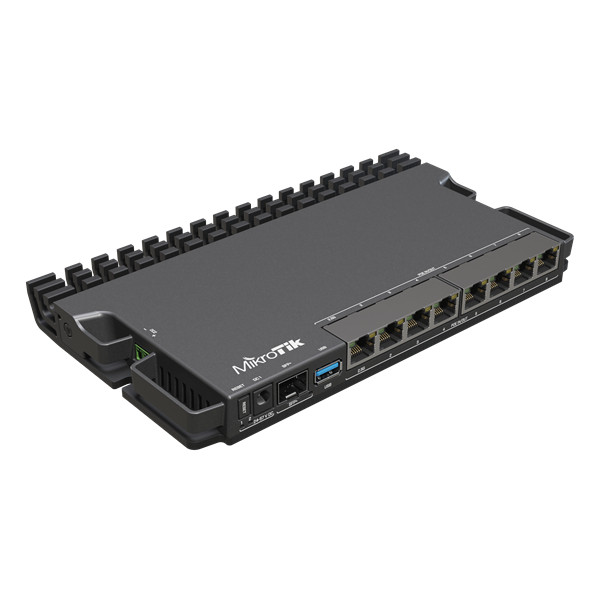

Name: MIKROTIK Vezetékes Router RouterBOARD 7x1000Mbps + 1x2,5Gbit + 1x10Gbit SFP+, Rackes - RB5009UPR+S+IN
Brand: MIKROTIK
SKU: 324283
Price: 136590 HUF
Availability: InStock

Specifications

Details
Product code	RB5009UPr+S+IN
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
Switch chip model	88E6393
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
IPsec hardware acceleration	Yes

Powering

Details
Number of DC inputs	3 (DC jack, 2-pin terminal, PoE-IN)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	150 W
Max power consumption without attachments	16 W
Cooling type	Passive
PoE in	802.3af/at (ether1), Mode B (ether2-ether8)
PoE in input Voltage	24-57 V

PoE-out

Details
PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	900 mA
Max out per port output (input 30-57 V)	440 mA
Max total out (A)	2.59 A
Total output current	2.28
Total output power	130

Ethernet

Details
10/100/1000 Ethernet ports	7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	7
Number of 2.5G Ethernet ports	1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in)	1

Fiber

Details
SFP+ ports	1

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5

Other

Details
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20
