MIKROTIK Cloud Smart Switch 5x1000Mbps (POE Out) + 1x1000Mbps SFP, Menedzselhető, Asztali - CSS106-1G-4P-1S

• Részletek
• Adatok

Részletek

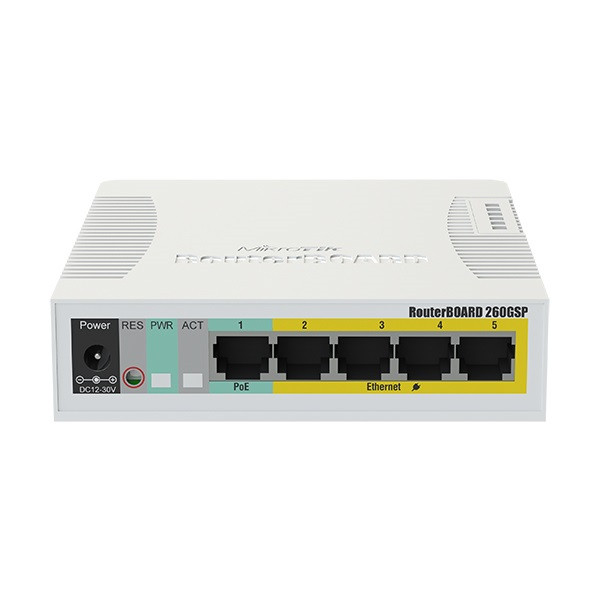

The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.



Specifications

Details
Product code	CSS106-1G-4P-1S
Dimensions	113x139x28mm
Operating System	MikroTik SwOS
Storage size	128 KB
Storage type	FLASH
Tested ambient temperature	-20°C to 70°C



Powering

Details
PoE in	Passive PoE
PoE in input Voltage	11-30 V
PoE out	Passive PoE
PoE-out ports	Ether2-Ether5
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	11-30 V
Max out per port output (input < 30 V)	1 A
Max total out (A)	2 A
Max power consumption	53 W
Max power consumption without attachments	5 W



Ethernet

Details
10/100/1000 Ethernet ports	5



Fiber

Details
SFP DDMI	Yes
SFP ports	1



Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes



Certification & Approvals

Details
Certification	CE/RED, EAC, ROHS





Included parts

•
  24V 2.5A power adapter

Adatok

Gyártó:

MIKROTIK

EAN:

5996409168364

Listaár:

21 349 HUF

Gyártó:

MIKROTIK

Gyártói cikkszám:

CSS106-1G-4P-1S

Garancia:

12 hónap

Rack-be szerelhető:

Nincs

Menedzselhetőség:

Web

Portok száma:

5

Port típusa:

1Gb Réz

Menedzselhető:

Van

SFP port:

1

Tömeg:

780 g/db
