Dimensions

99.8*98*25mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 40 W

Interfaces

6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/0.81A)

Installation

Desktop

Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

2 KB

Mac Address Table

Max Power Consumption

1.87W(220 V / 50 Hz, no PD connected)

44.8W(220 V / 50 Hz, with 40W PD connected)

Max Heat Dissipation

6.34 BTH/h (no PD connected)

152.32 BTH/h(with 40W PD connected)

Package Contents: • 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)
• Power Adapter
• Quick Installation Guide
Environment: Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

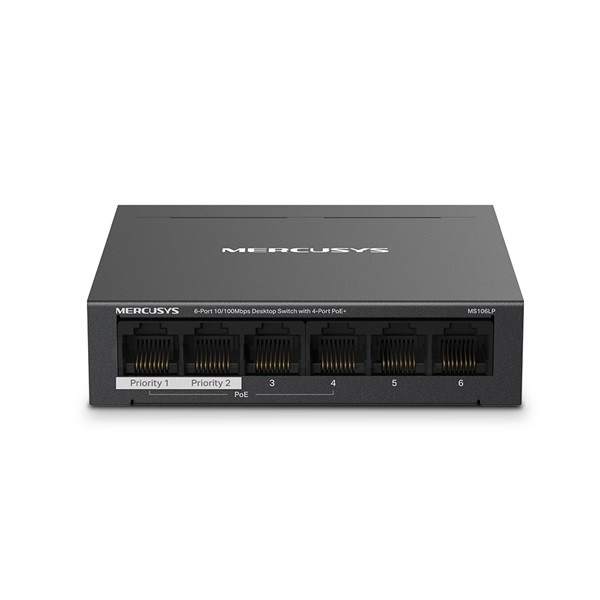

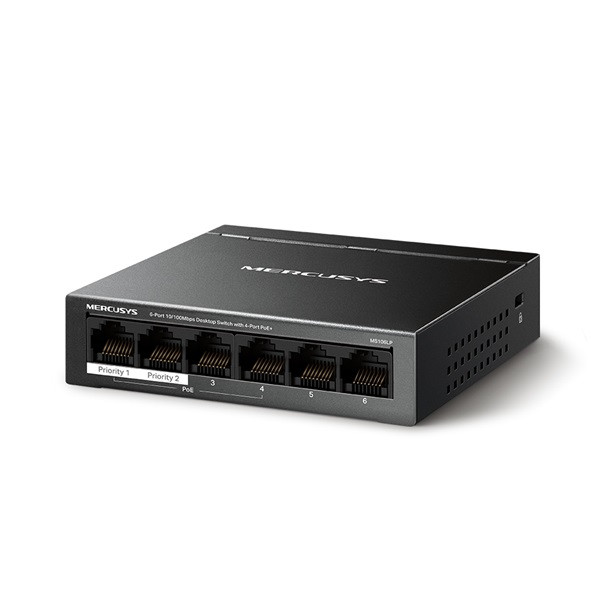

MERCUSYS Switch 6x100Mbps(4xPOE+), Fémházas Asztali, MS106LP
