Dimensions

99.8*98*25mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W

Interfaces

5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Installation

Desktop

Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame

9 KB

Mac Address Table

Max Power Consumption

3.13W(220 V / 50 Hz, no PD connected)

75.15W(220 V / 50 Hz, with 65W PD connected)

Max Heat Dissipation

10.64 BTH/h (no PD connected)

255.51 BTH/h(with 65W PD connected)

Package Contents: • 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
• Power Adapter
• Quick Installation Guide
Environment: Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

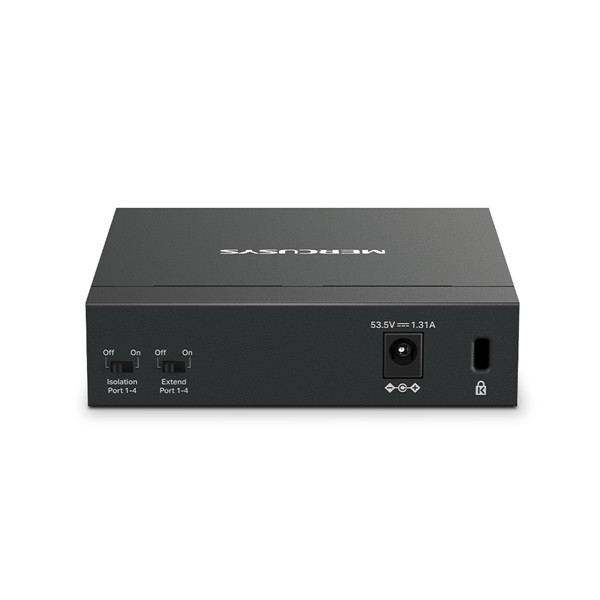

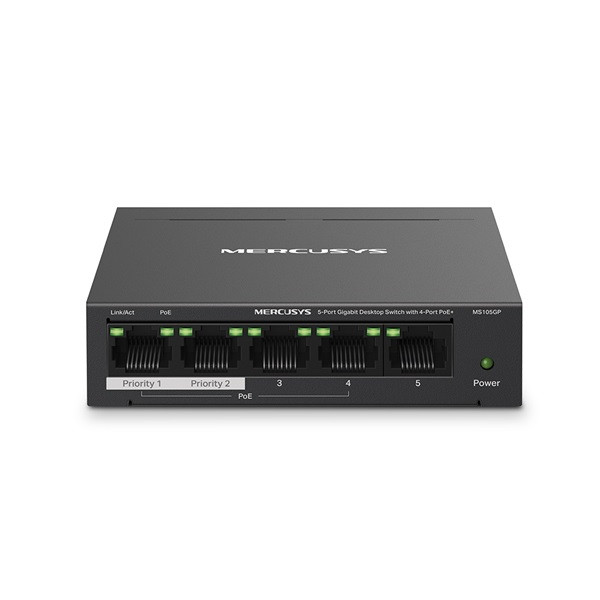

MERCUSYS Switch 5x1000Mbps (4xPOE+), Fémháza Asztali, MS105GP
