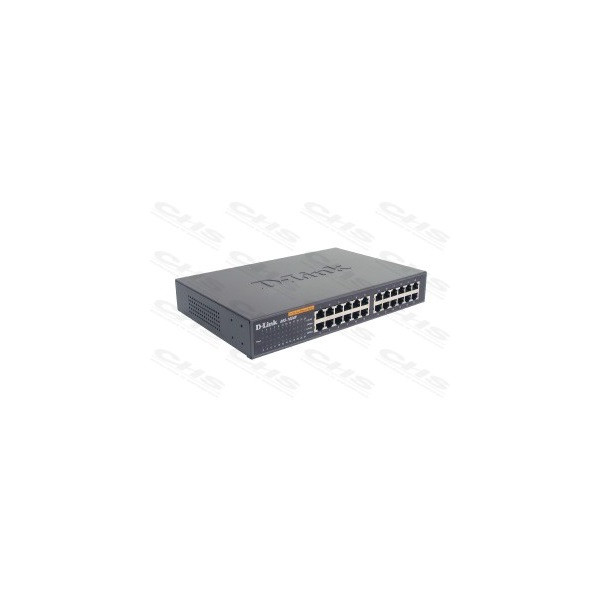

D-LINK Switch 24x100Mbps Fémházas Asztali Rackes, DES-1024D/E

• Részletek
• Adatok

Részletek

Technical Specifications:

D-Link DES-1024D Specifications
General
Standards	IEEE 802.3 10BASE-T Ethernet (twisted pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x flow control
LAN	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX compliance IEEE 802.3x Flow Control support
Data Transfer Rates	Fast Ethernet 100 Mbps Half-Duplex 200 Mbps Full-Duplex Ethernet 10 Mbps Half-Duplex 20 Mbps Full-Duplex
Functionality
Switching Capacity	4.8 Gbps
Number of Ports	24 10/100Mbps Fast Ethernet ports
Network Cables	10BASE-T: UTP CAT 3/4/5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX: UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange	Auto MDI/MDIX adjustment for all ports
LED Indicators	Per port: Link/Activity Per device: Power
Transmission Method	Store-and-forward
MAC Address Table	8K entries per device
MAC Address Learning	Automatic update
Packet Filtering /Forwarding Rates	Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port
Topology	Star
Protocol	CSMA/CD
Physical
Dimensions	11.0 x 5.0 x 1.7 inches(280 x 125.8 x 44 mm)
Weight	3.652lbs(1.66kg)
Power Consumption	Power On (Standby): DC input: 1.33 Watts AC input: 2.39 Watts Maximum: DC input: 5.50Watts AC input: 8.07Watts
Heat Dissipation	Power On (Standby): AC input: 8.16 BTU/h Maximum: AC input: 27.54 BTU/h
MTBF	810,880 hours
Temperature	Operating: 32 to 104 °F (0 to 40 °C) Storage: 14 to 158 °F (-10 to 70 °C)
Humidity	Operating: 10% to 90% non-condensing Storage: 5% to 90% non-condensing
Certifications	CE FCC ICES-003 C-Tick cUL CB

Adatok

Gyártó:

DLINK

EAN:

790069246111

Listaár:

17 932 HUF

Gyártó:

DLINK

Gyártói cikkszám:

DES-1024D/E

Garancia:

24 hónap

Rack-be szerelhető:

Van

Switch típus:

Fixed port

Menedzselhetőség:

Nem menedzselhető

Portok száma:

24

Port típusa:

100 Mbps

Switching kapacitás:

4,8

Menedzselhető:

Nincs

PoE (Power over Ethernet):

Nincs

Tömeg:

1,469 kg/db
