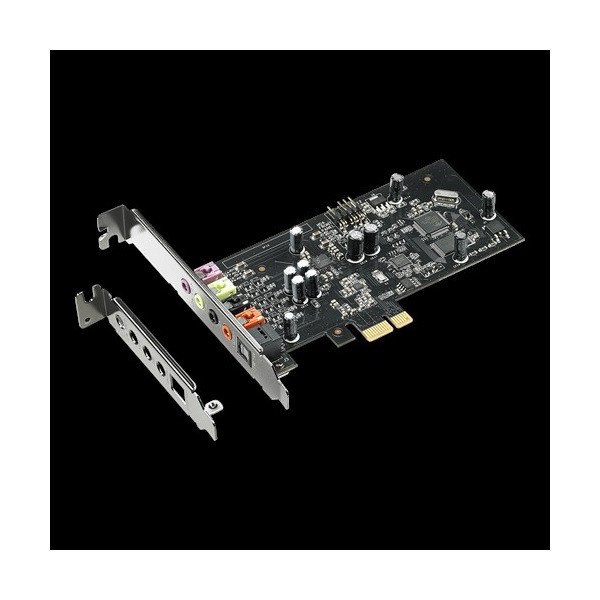

ASUS Hangkártya PCI-E 5.1 Xonar SE

• Részletek
• Adatok

Részletek

• Audio Interface
  PCI Express
• Audio Performance
  Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
  116 dB
  Input Signal-to-Noise Ratio (A-Weighted) :
  110 dB
  Output THD+N at 1kHz (Front-out) :
  0.00251 %(-92 dB)
  Input THD+N at 1kHz :
  0.00251 %(-92 dB)
  Frequency Response (-3dB, 24bit/192KHz input) :
  10 Hz to 87 KHz
  Output/Input Full-Scale Voltage :
  Headphone output : 2 Vrms (5.65 Vp-p)
• Chipset
  Audio Processor :C-Media USB2.0 6620A High-Definition Sound Processor (Max. 192KHz/24bit)
• Digital-to-analog Converter(DAC)
  Realtek S1220A (120dB SNR, Max. 192KHz/24bit)
• Sample Rate and Resolution
  Analog Playback Sample Rate and Resolution :
  44.1K/48K/96K/192KHz @ 16bit/24bit
  Analog Recording Sample Rate and Resolution :
  44.1K/48K/96K/192KHz @ 16bit/24bit
  S/PDIF Digital Output :
  44.1K/48K/96K/192KHz @ 16bit/24bit
  ASIO 2.2 Driver Support :
  44.1K/48K/96K/192KHz @ 16bit/24bit
• Connectivity
  Analog Output
  3 x 3.5 mm jack (1/8") (Front out/Side out/Rear out)
  Analog Input
  1 x 3.5 mm jack (1/8") (Line-in/Mic-in)
  Digital
  1 x S/PDIF out (1 x Optical (Toslink))
  1 x Front-Panel Header
• Special Features
  Smart Volume Normalizer™
  Xear 3D™ Virtual Speaker Shifter
  Xear Surround™
  Magic Voice™
• Operating System
  Windows® 10
  Windows® 8.1
  Windows® 7
• Accessories
  Low-profile bracket x 1
  Driver CD x 1
  Quick start guide x 1

Adatok

Gyártó:

ASUS

EAN:

4718017040563

Listaár:

16 739 HUF

Gyártó:

ASUS PER

Gyártói cikkszám:

XONAR_SE

Garancia:

24 hónap

Csatlakozók:

3 x 3.5 mm jack (1/8") (Front out/Side out/Rear out), 1 x 3.5 mm jack (1/8") (Line-in/Mic-in)

Külső/Belső:

Belső

Csatoló:

PCI-e

Digi out:

1 x S/PDIF out (1 x Optical (Toslink)), 1 x Front-Panel Header

Tömeg:

150 g/db
