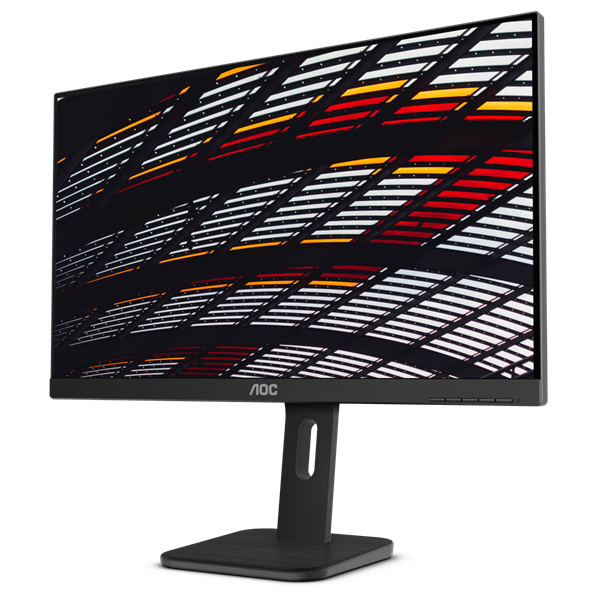

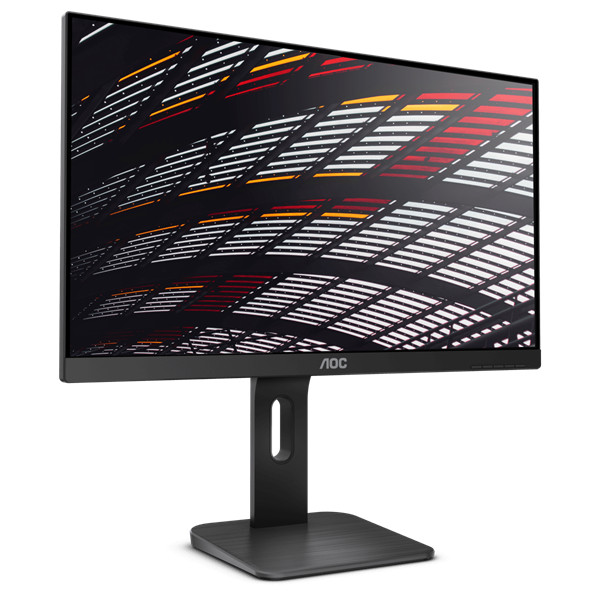

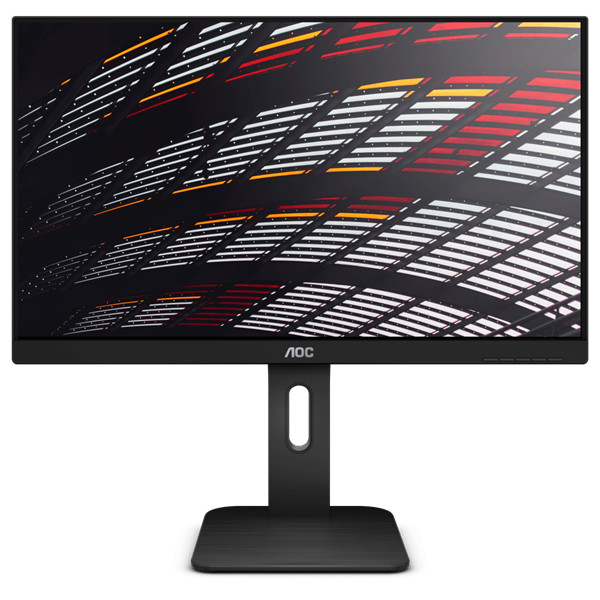

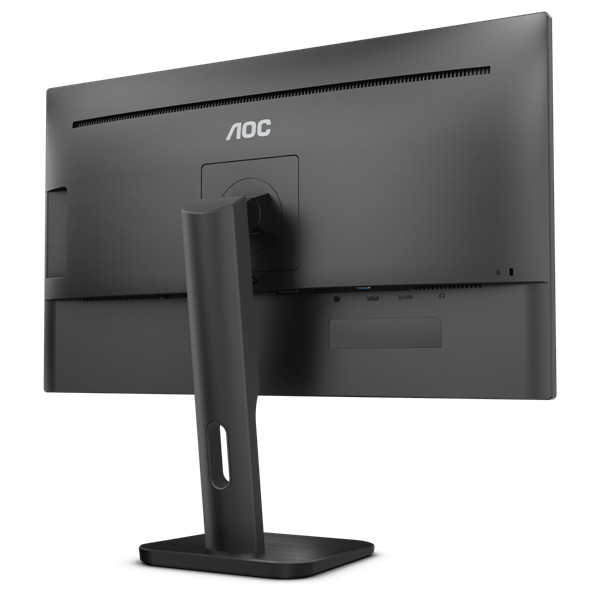

24P1

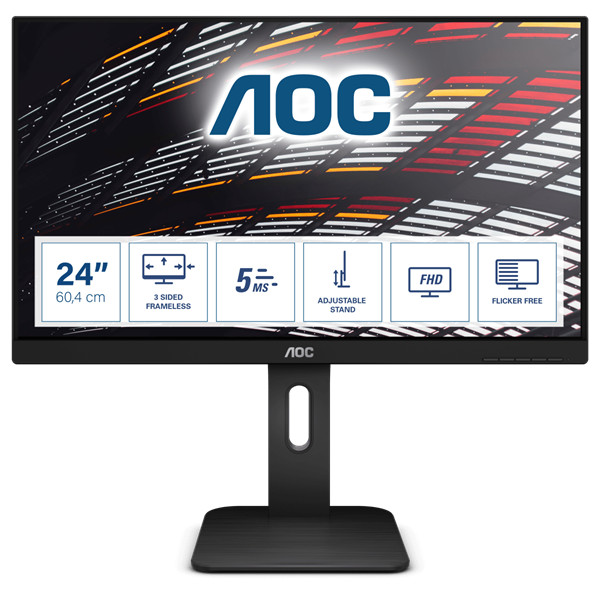

3-sides borderless 23.8” IPS display with Full HD

Sleek and elegant thanks to 3-sides borderless design, achieved thanks to the newest IPS panel in FHD (1920x1080px) resolution. Includes full range of display inputs (VGA, DVI, HDMI, DisplayPort), built-in speakers and improved ergonomic stand with 150 mm height adjustment.

General

Model name	24P1
EAN	4038986146630
Product Line	Pro-line
Series	P1
Channel	B2B
Classification	Hero
Section	Business
Launch date	29/05/2018



Screen

Resolution	1920x1080
Refresh rate	60Hz
Screen size (inch)	23.8 inch
Screen size (cm)	60.4 cm
Flat / Curved	Flat
Backlight	WLED
Panel Type	IPS
Aspect ratio	16:9
Display Colours	16.7 Million
Panel Colour in Bits	6
sRGB Coverage (%) (CIE 1931)	106
Adobe RGB Coverage (%) (CIE 1931)	78
Active Screen Area (HxW)	527,040 x 296,46 mm
Pixel Pitch	0.2745
Scanning Frequency	"30~83KHz(H) 50~76Hz(V)"
Response time (GtG)	5 ms
Contrast (static)	1000:1
Contrast (dynamic)	50M:1
Brightness (typical)	250 cd/m²
Viewing angle (CR10)	178/178 º
Hard Glass	3H
OSD languages	EN, FR , ES, PT, DE, IT, NL, SE, FI, PL ,CZ, RU, KR, CN (T), CN (S), JP



Exterior

Monitor colour	Black
Bezel Type	Borderless
Removable Stand	Yes



Ergonomics

Vesa Wallmount	100x100
Tilt	-5/35 °
Swivel	-180/180 °
Pivot	Yes
Height Adjust Amount	150mm



Connectivity and Multimedia

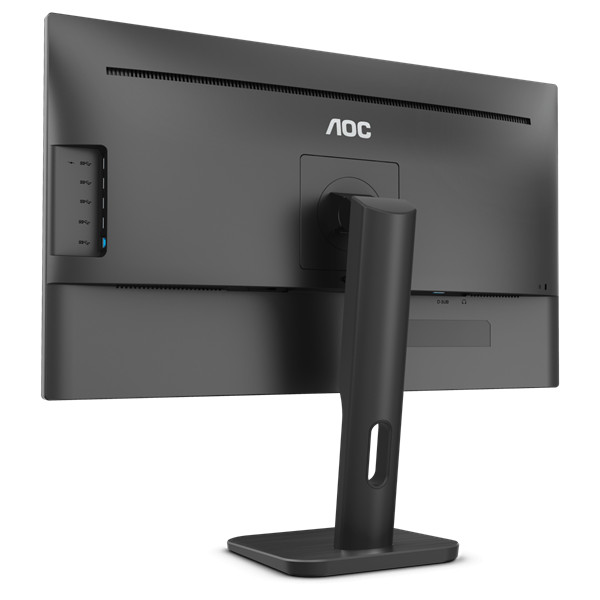

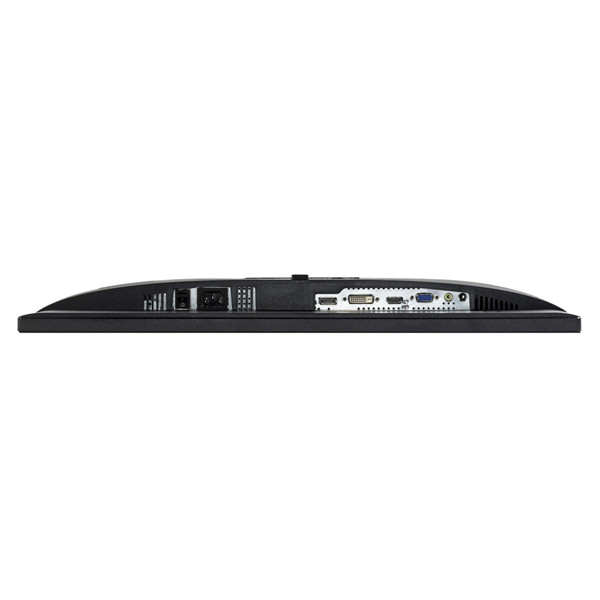

Signal Input	HDMI 1.4 x 1, DisplayPort 1.2 x 1, VGA, DVI

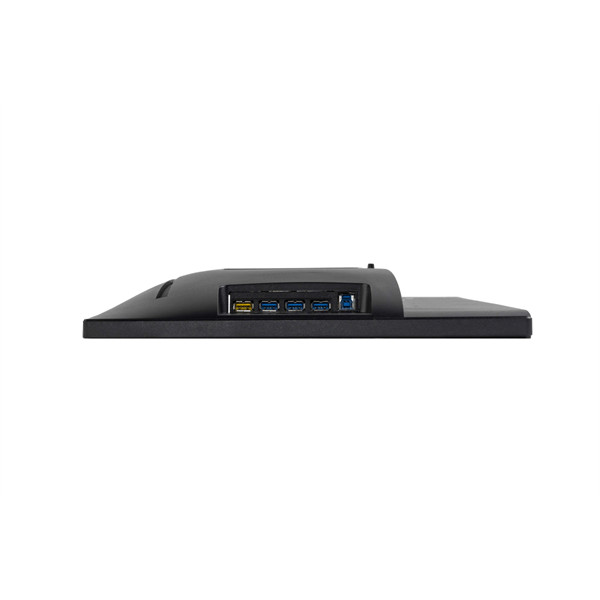

USB input	USB 3.0 x 4
USB out ports	4



Multimedia

Audio Input	Line in
Built-in Speakers	2 W x 2
Audio output	Headphone out (3,5mm)



Features

Flicker-free	Yes
Blue Light Technology	Low blue light



Power / Environmental

Powersupply	Internal
Powersource	100 - 240V 50/60Hz
Power Consumption On (Energystar test method)	16.73 watt
Power Consumption Standby	0.32 watt
Power Consumption Off	0.23 watt
EnergyClass	E
Approbations / Regulations	Yes



Listed on Energystar Website

TCO	8
EPEAT	Yes
Listed on Epeat Website	Yes
TUV-GS	Yes
TUV-Bauart	Yes
CE	Yes
FCC	Yes
EAC	Yes



Warranty

Pixel Policy	ISO 9241-307
Warranty Period	3 Years
MTBF	50.000 hours



Dimensions / Weights

Product height (mm)	518.9
Product width (mm)	539.1
Product depth (mm)	219.5
Product dimensions incl base	518.9x539.1x219.5
Product dimensions excl base	325.6x539.1x49.4
Packaging Dimensions (L x W x H)	752x159x408 mm
Product Dimensions (incl base)	518.9x539.1x202.5 mm
Gross Weight (including package)	6.55 Kg
Net Weight (excluding package)	4.6 Kg



What's in the Box?

HDMI cable	1,8 m
Displayport Cable	1,8 m
Audio Cable	1,5 m
USB cable	1,8 m
Power Cable C13	1,8 m

Típus:

Monitor

Szín:

Fekete

Gyártó:

AOC

EAN:

4038986146227

Listaár:

55 055 HUF

Gyártó:

AOC

Gyártói cikkszám:

24P1

Garancia:

36 hónap

HDMI:

Van

Display Port:

Van

D-Sub:

Van

DVI:

Van

Felbontás:

1920 x 1080 (FHD1080) 16:9

Képátló:

23,8

Képarány:

16:9

Dönthető:

Van

Forgatható:

Van

Hangszóró:

Van

Fali rögzítés:

100x100mm VESA falitartó-támogatás

Kontrasztarány:

1000

Fényerő:

250

USB:

Van

Állítható magasság:

Van

Fejhallgató kimenet:

Van

Láthatósági szög:

178/178

Pivot (forgatható):

Van

Válaszidő:

Panel típus:

IPS

Képfrissítési frekvencia:

Beépített tápegység:

Van

Energia hatékonyság:

Tömeg:

6,55 kg/db

AOC IPS monitor 23.8" 24P1, 1920x1080, 16:9, 250cd/m2, 5ms, VGA/DVI/HDMI/DisplayPort/4xUSB, Pivot, hangszóró
